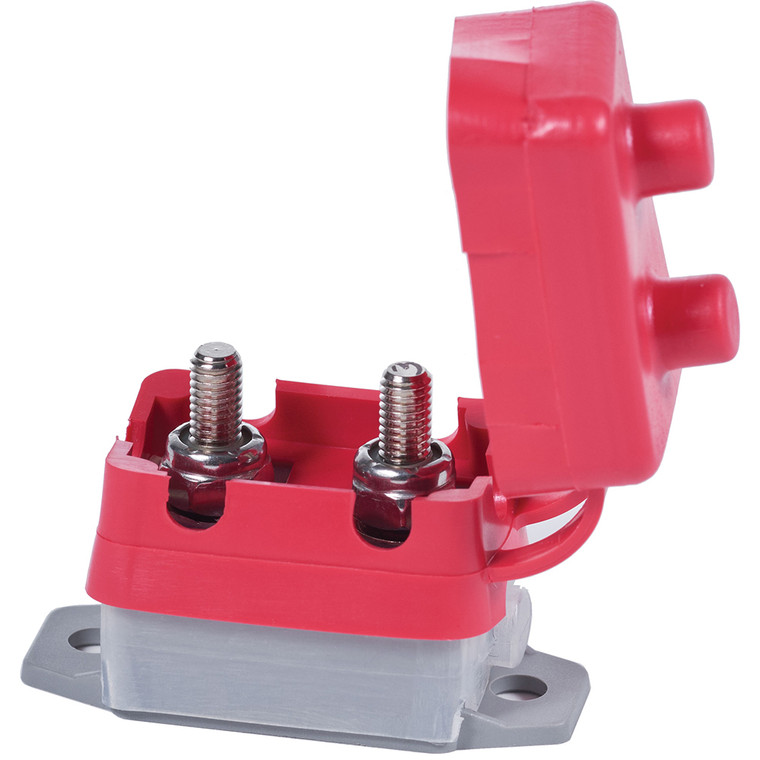

Blue Sea 7153 Short Stop Circuit Breaker - 20A [7153]

Blue Sea 7153 Short Stop Circuit Breaker - 20A [7153]

UPC:
632085071530
$12.99
$13.99
(You save $1.00 )
Width:
3.00 (in)
Height:
2.00 (in)
Depth:
7.00 (in)
Current Stock:
15
Adding to cart… The item has been added
Description

7153 Short Stop Circuit Breaker - 20A

  • Corrosion Resistant Material
  • IP 64 Water Resistant Boot
  • Push to Reset Only
  • Interrupt Capacity: 2,500A @ 28VDC
  • Red insulating boot included in retail package

Specifications

  • Amperage: 20A DC
  • Maximum Voltage: 28V DC
  • Interrupt Capacity: 2500A @ 28V DC
  • Minimum Operating Temperature: -10º C
  • Maximum Operating Temperature: 60º C
  • Screw Terminal Torque: 24 in-lb (2.71 Nm)
  • Terminal Stud: #10-32"

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Amperage: 20a
  • Box Dimensions: 2"H x 3"W x 7"L WT: 0.12 lbs
  • UPC: 632085071530
Additional Information
MPN:
7153
